Bauer Rainstar E51
pure quality.

RAINSTAR E

An irrigation machine that you can rely on one hundred percent. That works confidently and reliably contributes to a rich harvest. That retains its value for decades and yet is always up to date. This is RAINSTAR E. Pure quality in every respect. Manufactured in the typical Bauer manner in compliance with the highest quality standards and in accordance with ISO 9001 guidelines. Powerfully driven by the TVR 60 full-flow radial turbine. The RAINSTAR E can be equipped with single or tandem axle.

It can be used in the classic way with a wheel cart and a wide range sprinkler. Alternatively, it can also be equipped with a boom cart and spray nozzles. Digital tools make it fit for the future. It is economical and looks good too. Our customers agree: They no longer want to be without the RAINSTAR E.

Made in Austria

Success with a high level of quality

Reliability, durability and efficiency are the main requirements of an irrigation machine. With the RAINSTAR E models the requirements are not only met but exceeded.  The hot dip galvanized steel construction is visible proof of the traditional BAUER synthesis of technology, robustness, durability and design. The entire production is made according to the highest quality standards according to the self-imposed ISO 9001 standards.

Our strengths
Drive
Combi wheel cart
Controls
Our strengths
1273_530144455b0b416e121c82ceaa7c4bdb
In the closer vicinity

Hot dip galvanisation

All steel parts of our Rainstars are hot dip galvanized. This means optimal corrosion protection for our machines, which is reflected in the stable value and long lifespan of our products.

The fact that galvanizing takes place in plants near our headquarter in Voitsberg proves that we also focus on sustainability in this regard.

1274_530144455b0b416e121c82ceaa7c4bdb
Inhouse-Production

Homemade PE-pipe

For decades, BAUER has produced PE-pipes for the RAINSTAR in-house. By using a special mixture of granulates, BAUER can guarantee the highest and constant quality for a long lifespan at highest loads

Due to the independence and flexibility of our own production, it is possible to adjust the wall-thickness of every single PE-pipe in order to achieve low pressure loss and to save energy.

Abstuetzung Kinematik_09
Firmly anchored to the ground

Robust machine supports

An important factor for successful irrigation is that the hose-reel irrigator is anchored firmly to the ground. By developing a special kinematics and an extremely flat angle for the machine supports, the power is directly passed into the center of the machine and is therefore optimally distributed. Therefore hydraulic machine supports are standard on all RAINSTAR E units.

bogen
Gentle guidance into the right position

Closed reel core

The first layer of the PE pipe is the layer exposed to the highest retraction forces and therefore it is important that no edges or small supporting points damage the PE pipe and eventually reduce its lifespan. To prevent such wear, each reel core of the Rainstar drum is completely closed and equipped with a special pipe guard. The first layer of the PE pipe sits on the drum evenly and without distortion. The pipe is gently guided into the right position for each layer.

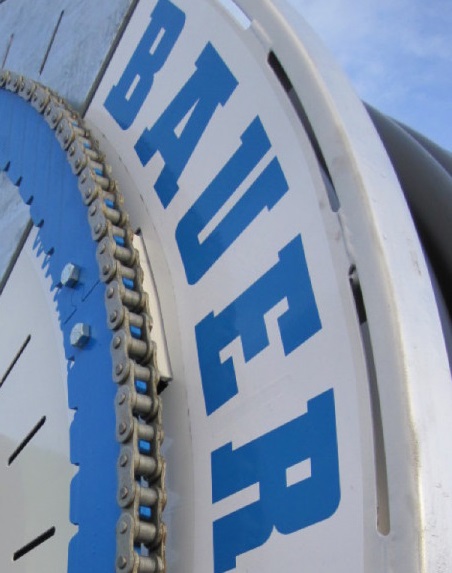

Kettenantrieb
Maintenance-free operation and long lifespan

Exact chain drive

The power transmission for the PE pipe retraction over a large dimensioned pipe reel is achieved with high quality chain and precise, laser-cut chain elements. Due to the large diameter of the sprocket and many singular chain links, the retraction power is spread optimally over a large area. By using coated, high-performance chains, a maintenance-free operation and a long lifespan are guaranteed even with high retraction power.

Wickeleinrichtung
PRECISELY DRIVEN HELICALLY GROOVED SPINDLE

Level-wind

A precise level-wind system is essential for a trouble-free operation. The BAUER level-wind works gently and nearly maintenance-free through a double guided winding mechanism and a precisely driven helically grooved spindle. Especially at high retraction forces and angular PE-pipe retraction, it is important that the guide rails are supported twice in order to absorb the forces and guide the PE-pipe precisely in the right direction. This results in a longer lifespan of the PE-pipe and trouble free operation

Drive
Turbine TVR60_gold
Power and efficiency in one package

Radial full-flow turbine TVR60

The radial full-flow economy turbine TVR 60 with the unique VARIO NOZZLE is a power pack and energy saver in one. No matter if small or water saving precipitation rates or high amounts of water need to be dealt with - the TVR 60 turbine convinces with a high degree of efficiency and low pressure losses over the whole range of power.

Even under particularly difficult operating conditions, the turbine still has reserves for operational safety, resulting in enormous cost savings and minimum pressure losses in normal operation.

Maximum use of output is achieved by direct flow from the Vario nozzle onto the impeller.  At maximum and minimum nozzle settings, the full stream flows over the turbine's impeller. This way a high efficiency can be achieved with every flow rate with a low loss of pressure.

Production and testing

Highest precision during assembly for maximum efficiency in operation. Every single part of the high-tech turbine is produced in-house. After the assembly each turbine is individually checked at an ultra-modern, fully automatic test bench regarding its performance and quality before the RAINSTAR assembly continues.

Getriebe E
Changing the gears in a comfortable way

BAUER 4 speed gearbox

The concentrated power of the turbine is transmitted without loss over a V-belt or directly to the robust BAUER 4-speed gearbox. 4 different transmission gear ratios ensure that the turbine operates at cost saving maximum efficiency and thus it is possible to reduce costs.

The control with precise shifting gate and display for enables changing the gears in a comfortable way. The safety lock of the clutch lever prevents a change of gear with engaged drive in order to prevent possible misuse of untrained personnel.  The aerated drum brake is placed directly on the drive & ensures highest security during road transport.

The brake adapts over different spring loads automatically to the different operating conditions and improper operation is excluded.

The result is a long service life, high operational reliability and consistent quality.

Combi wheel cart
Bauer_Auslegerstativ_Österreich_Rollrasen2
Bauer_Auslegerstativ_Österreich_Rollrasen
Gentle to the drops

Combi wheel cart

The combi wheel cart impresses with its infinitely adjustable track width as well as the symmetric and asymmetric PE pipe retraction. The high overhead clearance prevents damages even with high crops. Large dimensioned tires guarantee a safe operation, even in rough terrain - thanks to simple track width adjustment - or with difficult crops.

Bauer_Auslegerstativ_Österreich_Rollrasen2
Bauer_Auslegerstativ_Österreich_Rollrasen
Gentle to the drops

Combi wheel cart

The combi wheel cart impresses with its infinitely adjustable track width as well as the symmetric and asymmetric PE pipe retraction. The high overhead clearance prevents damages even with high crops. Large dimensioned tires guarantee a safe operation, even in rough terrain - thanks to simple track width adjustment - or with difficult crops.

The complete package

Constant angle of the water jet

Automatic levelling

Hydraulic cart lift

Especially in the final phase of the irrigation or on uneven terrain, the automatic tilt compensation cares for a consistent position of the sprinkler. The angle of the water jet of the sprinkler remains unchanged and protects the crops from damages by water.

In order that the Rainstar can pass between the plant rows, the track width of the RAINSTAR can be adjusted. A special guide ensures that the PE-pipe is laid out in a straight line between the plant rows. Tractor, RAINSTAR and wheel cart move in the exactly same line in order to prevent unnecessary damage to the crops. The combi-wheel cart together with the machine support is being lifted hydraulically into transport position at the end of the irrigation process. Due to the special construction of the RAINSTAR it is not necessary to take any precautions for the transport - the band brake on the gear fixes the pipe reel and the wheel cart, automatic and absolutely safe.

IMG_5439

Boom AS50

Spray booms apply a particularly fine mist, equally protecting the crop and soil structure. Already a low connection pressure is enough for operating a boom. This ensures sustainable use of water and energy and energy resources.

for detailed information see chapter booms



Controls
Bauer Rainstar Ecostar

RAINSTAR controls

Modern irrigation needs reliable, precise control systems. The irrigation electronics from BAUER are state-of-the-art and enable precise control of precipitation and reliable monitoring of the machine. This guarantees minimal water and energy consumption with maximum efficiency at the same time.

The CAREFREE package

Exact length measurement

Regular retraction speed

Contactless

Wear-free

Trouble free

SUSTAINABILITY AT THE CLICK OF ONE BUTTON

Innovation on a high-tech level

Simple operation at the click of one button is an important factor in the development of new RAINSTAR controls. Through full-time monitoring of chose set-point and actual value of the retraction speed, the crops are precisely irrigated. Programming of pre- and post irrigation can also very easily be done at the click of one button. Our controls work sustainably with a solar panel and a 12 Volt battery to ensure a sufficient power supply. Through the arrangement of 4 magnets there is a permanent measurement even at low retraction speed in order to assure precise regulation of the precipitation.

The integrated shut-off sensor is operationally reliable, protected against accidental operation, mounted under the drive cover and is disengaged mechanically at the end of the strip.

Rainstar_13
Modern, precise and SMS function

Ecostar 6000

Latest irrigation electronics for precise control of precipitation rates, as well as control and monitoring via SMS function.

  • Powerful irrigation electronics with 4.3 „Full LED” Touch-Display
  • Program preselection of 12 different programs
  • Recording of water consumption on different levels
  • Switching of operation / programming of retraction speed to precipitation rate
  • Signal for user if end of PE-pipe is reached and for operation of short distance sprinkler
  • Record and if required read out the last operating steps for error analysis
  • Automatic functional analysis of all components and sensors
  • Two solar panels and a 12 volt battery care for sufficient power supply
Rainstar_T61_ALS_Salat_AT-11
The small one with the big advantages

Ecostar 4300

  • Easy operation at the click of one button
  • 4‑line display
  • Irrigation status indication
  • Permanent set-actual speed comparison
  • Solar panel + 12V battery
  • Operation-hour counter
  • Real-time clock-start time indication
  • Variable irrigation speed zones
  • Precipitation indicator

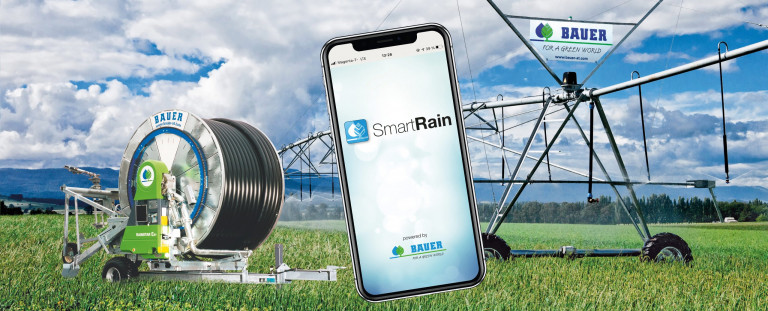

2_Montage_SmartRain_Pivot_Rainstar

SmartRain

Simple monitoring and control of different irrigation machines via App directly from the smartphone or the office on the PC.

all about SmartRain

Rainstar E

performance overview

E11
E21
E31
E41
E51
E51 XL 4W
E51 XL 4WB
E55 L
E55 XL
E11

Rainstar
Model
TypePE-pipe
Ø mm
PE-pipe
length m
Strip width
m
Consumption
m³/h
Nozzle sizes
mm
Connection press
bar
Weight in kg
with Water
Weight in kg
without Water
E1190-4809048054 - 7517 - 4416,0 - 24,04,5 - 11,05.5953.548
E11100 - 35010035058 - 9422 - 7718,0 - 30,04,5 - 11,05.2903.307
E11100 - 38010038058 - 9022 - 7318,0 - 30,04,5 - 11,05.5263.391
E11100 - 40010040058 - 9022 - 6918,0 - 30,04,5 - 11,05.6833.515
E11110 - 30011030080 - 11241 - 11225,0 - 37,54,5 - 11,05.3923.350
E11110 - 33011033077 - 10935 - 10520,0 - 35,04,5 - 11,05.6773.450
E11110 - 35011035075 - 10633 - 9822,5 - 35,04,5 - 11,05.8673.506
E21

Rainstar
Model
TypePE-pipe
Ø mm
PE-pipe
length m
Strip width
m
Consumption
m³/h
Nozzle sizes
mm
Connection press
bar
Weight in kg
with Water
Weight in kg
without Water
E21100 - 43010043058 - 8722 - 6418,0 - 28,04,5 - 11,06.1563.878
E21100 - 45010045054 - 8317 - 5516,0 - 26,04,5 - 11,06.3133.940
E21110 - 35011035075 - 10533 - 9222,5 - 35,04,5 - 11,06.1053.744
E21110 - 38011038075 - 10533 - 9222,5 - 35,04,5 - 11,06.3903.855
E21110 - 40011040075 - 10333 - 9222,5 - 35,04,5 - 11,06.5803.946
E21110 - 42011042075 - 10233 - 8422,5 - 35,04,5 - 11,06.7704.027
E21120 - 30012030080 - 11541 - 11825,0 - 37,54,5 - 11,06.1153.813
E31

Rainstar
Model
TypePE-pipe
Ø mm
PE-pipe
length m
Strip width
m
Consumption
m³/h
Nozzle sizes
mm
Connection press
bar
Weight in kg
with Water
Weight in kg
without Water
E31100 - 48010048054 - 8317 - 5516,0 - 26,04,5 - 11,06.6484.219
E31100 - 50010050054 - 8317 - 5516,0 - 26,04,5 - 11,06.8054.275
E31100 - 52010052054 - 8017 - 5216,0 - 26,04,5 - 11,06.9624.391
E31110 - 45011045073 - 10028 - 8020,0 - 32,54,5 - 11,07.1544.334
E31110 - 47011047073 - 6628 - 8020,0 - 32,54,5 - 11,07.3454.399
E31110 - 49011049073 - 9728 - 7818,0 - 30,04,5 - 11,07.5354.486
E31125 - 31012531080 - 11541 - 11825,0 - 37,54,5 - 11,06.6824.183
E31125 - 35012535080 - 11441 -11225,0 - 37,54,5 - 11,07.1734.351
E41

Rainstar
Model
TypePE-pipe
Ø mm
PE-pipe
length m
Strip width
m
Consumption
m³/h
Nozzle sizes
mm
Connection press
bar
Weight in kg
with Water
Weight in kg
without Water
E41100 - 55010055054 - 8017 - 5216,0 - 2604,5 - 11,07.7875.093
E41100 - 59011059054 - 7817 - 5016,0 - 26,04,5 - 11,08.1015.248
E41110 - 50011050058 - 8622 - 6918,0 - 30,04,5 - 11,08.2195.215
E41110 - 52011052066 - 8728 - 6920,0 - 30,04,5 - 11,08.4095.284
E41110 - 55011055066 - 8728 - 6920,0 - 28,04,5 - 11,08.6945.455
E41120 - 42012042075 - 10933 - 10322,5 - 35,04,5 11,08.2175.045
E41120 - 45012045075 - 10833 - 9822,5 35,04,5 - 11,08.5575.158
E41120 - 37012537080 - 11541 - 11825,0 - 37,54,5 - 11,08.0084.888
E41125 - 40012540080 - 11541 - 11825,0 - 37,54,5 - 11,08.3765.003
E41140 - 34014034080 - 11841 - 12425,0 - 37,54,5 - 11,08.8555.302
E51

Rainstar
Model
TypePE-pipe
Ø mm
PE-pipe
length m
Strip width
m
Consumption
m³/h
Nozzle sizes
mm
Connection press
bar
Weight in kg
with Water
Weight in kg
without Water
E51110 - 59011059058 - 8322 - 6518,0 - 30,04,5 - 11,08.9825.552
E51110 - 62011062058 - 8022 - 5218,0 - 26,04,5 - 11,09.2675.698
E51110 - 65011065058 - 8022 - 5218,0 26,04,5 - 11,09.5525.892
E51120 - 53012053075 - 10333 - 9222,5 - 35,04,5 - 11,09.3695.532
E51120 - 55012055075 - 10333 - 8822,5 - 32,54,5 - 11,09.5955.705
E51120 - 57012057075 - 10333 - 8522,5 - 32,54,5 - 11,09.8225.837
E51120 - 60012060076 - 10233 - 8022,5 - 32,54,5 - 11,010.1606.050
E51120 - 45012545080 - 11241 - 11225,0 - 37,54,5 - 11,08.8975.161
E51125 - 50012550075 - 10833 - 9822,5 - 35,04,5 - 11,09.5115.480
E51140 - 40014040080 - 11841 - 12425,0 - 37,54,5 - 11,09.5335.599
E51 XL 4W

Rainstar
Model
TypePE-pipe
Ø mm
PE-pipe
length m
Strip width
m
Consumption
m³/h
Nozzle sizes
mm
Connection press
bar
Weight in kg
with Water
Weight in kg
without Water
E51 XL 4W110 - 67011067065 - 9225 - 5518 - 265 - 1110.6176.869
E51 XL 4W110 - 70011070065 - 9225 - 5518 - 265 - 1110.9027.703
E51 XL 4W120 - 63012063075 - 9833 - 7222 - 32,55 - 1111.3757.055
E51 XL 4W120 - 65012065075 - 9833 - 7222 - 32,55 - 1111.6017.144
E51 XL 4W125 - 56012556080 - 10440 - 8825 - 355 - 1111.1226.746
E51 XL 4W120 - 58012558080 - 10440 - 8825 - 355 - 1111.3687.144
E51 XL 4W125 - 60012560080 - 10440 - 8825 - 355 - 1111.6137.082
E51 XL 4W125 - 62012562080 - 10440 - 8825 - 355 - 1111.8597.178
E51 XL 4W140 - 43014043080 - 11440 - 11025 - 37,55 - 1110.8696.555
E51 XL 4W140 - 46014046080 - 11440 - 11025 - 37,55 - 1111.3316.715
E51 XL 4WB

Rainstar
Model
TypePE-pipe
Ø mm
PE-pipe
length m
Strip width
m
Consumption
m³/h
Nozzle sizes
mm
Connection press
bar
Weight in kg
with Water
Weight in kg
without Water
E51 XL 4WB110 - 67011067065 - 9225 - 5518 - 265 - 1110.5976.849
E51 XL 4WB110 - 70011070065 - 9225 - 5518 - 265 - 1110.8827.053
E51 XL 4Wb120 - 63012063075 - 9833 - 7222 - 32,55 - 1111.3557.035
E51 XL 4WB120 - 65012065075 - 9833 - 7222 - 32,55 - 1111.5817.124
E51 XL 4WB125 - 56012556080 - 10440 - 8825 - 355 - 1111.1026.726
E51 XL 4WB120 - 58012558080 - 10440 - 8825 - 355 - 1111.3486.883
E51 XL 4WB125 - 60012560080 - 10440 - 8825 - 355 - 1111.5937.062
E51 XL 4WB125 - 62012562080 - 10440 - 825 - 355 - 1111.8397.158
E51 XL 4WB140 - 43014043080 - 11440 - 11025 - 37,55 - 1110.8496.535
E51 XL 4WB140 - 46014046080 - 11440 - 11025 - 37,55 - 1111.3116.695
E55 L

Rainstar
Model
TypePE-pipe
Ø mm
PE-pipe
length m
Strip width
m
Consumption
m³/h
Nozzle sizes
mm
Connection press
bar
Weight in kg
with Water
Weight in kg
without Water
E55 L110 - 75011075065 - 8225 - 5517,5 - 27,55 - 1112.6348.604
E55 L120 - 65012065075 - 9833 - 7220 - 305 - 1112.8578.400
E55 L120 - 67012067075 - 9833 - 7220 - 305 - 1112.8578.400
E55 L120 - 67012067075 - 9833 - 7220 - 305 - 1113.0848.563
E55 L120 - 70012070075 - 9833 - 7220 - 305 - 1113.4238.776
E55 L125 - 62012562080 - 10340 - 8820 - 32,55 - 1113.1158.433
E55 L125 - 65012565080 - 10340 - 8820 - 32,55 - 1113.4838.687
E55 L125 - 67012567080 - 10340 - 8820 - 32,55 - 1113.7288.842
E55 L140 - 46014046080 - 11540 - 11020 - 37,55 - 1112.5877.863
E55 L140 - 48014048080 - 11540 - 11020 - 37,55 - 1112.8957.998
E55 L140 - 50014050080 - 11540 - 11020 - 37,55 - 1113.2038.102
E55 XL

Rainstar
Model
TypePE-pipe
Ø mm
PE-pipe
length m
Strip width
m
Consumption
m³/h
Nozzle sizes
mm
Connection press
bar
Weight in kg
with Water
Weight in kg
without Water
E55 XL125 - 68012568070 - 10030 - 7020 - 305 - 1113.7718.850
E55 XL125 - 71012571070 - 10030 - 7020 - 305 - 1114.1399.121
E55 XL125 - 74012574070 - 10030 - 7020 - 305 - 1114.5079.380
E55 XL140 - 50014050080 - 11030 - 11020 - 37,55 - 1113.1238.337
E55 XL140 - 53014053080 - 11030 - 11020 - 37,55 - 1113.5858.512
E55 XL140 - 56014056080 - 11030 - 11020 - 37,55 - 1114.0478.687
Questions about the Rainstar E?

CONTACT

Contact

    * Por favor note que este é um campo obrigatório.
