Easy to use. Precise. Economical.


The BAUER CENTERSTAR 9000 is a prime example of a fully automated irrigation system that will consistently do its job without any help. The CENTERSTAR consists of a stationary central tower with an also stationary power and water supply. The full potential of the CENTERSTAR is realized on square fields without obstacles. In this scenario, the system offers impressively low purchase costs with maximum space utilization.

The pivot systems from BAUER are considered the most robust and durable on the market. They are also known for standing up to the fiercest winds. This is due in part to their low center of gravity, which considerably increases their stability. Plus, the frame construction uses generously dimensioned profiles to make it heavier and more stable. The result is an absolutely solid frame structure that is immune to torsional bending. A BAUER pivot always keeps everything in balance.


  • Maximizing the irrigated area in square fields
  • Fully automatic function reduces labour input and costs to a minimum
  • Gentle precipitation, which does not damage crops
  • Low pressure system with low energy consumption
  • High irrigation efficiency due to water application close to the ground
  • Reliable high yield even in dry periods
  • Long lifetime
  • SmartRain App-ready for modern irrigation management
Main components
Control panels

System 9000

Central Tower Options168, 203, 24
Pipe diameter options133 (5 1/4"), 168 (6 5/8"), 203 (8"), 219 (8 5/8"), 254 (10")
Span length options42,3m 48,1m 54,0m 59,8m 65,7m
Overhang options5,9m 11,7m 17,3m 23,4m 29,3m
Towable central tower options4‐Rad Zentralturmwagen; Kufen
Tires dimensions options14,9‐24 / 16,9‐24
Main components
The highest level of stability for continuous operation

Central tower

  • Sturdy structure on four legs with broad support base
  • Pivot tower angle 100x100mm for higher rigidity
  • Broad support plates with large support surface area
  • Horizontal braces for increased machine stability
  • Entire pivot tower is hot dip galvanized
Australien März 2012 076
the highest level of security over many years

Span - Trussing

  • Five different tube diameters provide a wide application range (50-600m³/h)
  • Optimum adjustment for lowest operating costs
  • Only one tube length (5.85m) for easy assembly and transportation
  • Truss rods, diam. 20mm, with high tensile strength and large safety reserves
  • Even arc shape of the trussing ensures high degree of stability
  • The 90° arrangement of the bracing angle ensures a uniform load distribution in the most difficult terrain
  • Crossed drive tower braces for high stability on uneven terrain
Greater stability

Centerstar drive tower

  • Broad based construction
  • Optimal power input
  • Large-dimension drive tower bracing angle 100x75mm
  • The wide wheel base of 4.3m (standard) and 5.2m guarantees a high level of stability, even on rough terrain and in strong winds
  • 2 construction heights of 4.2 m (standard) and 5.0m for optimal adaptation to different crops
  • Towable - high level of flexibility and adaptation to crop rotation
Precise and reliable

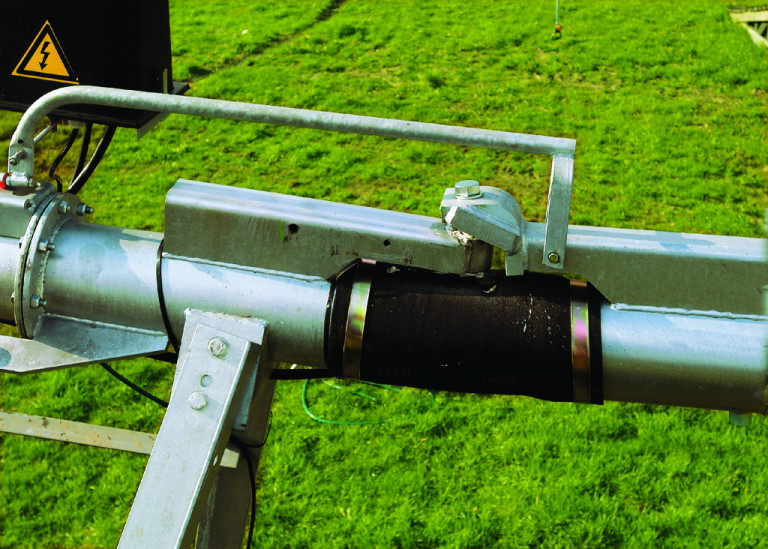

Tower coupling

The sturdy drive tower coupling, free from play, with ball and socket perfectly compensates for extreme slopes. Mounted on the outside of the pipe, it does not restrict the cross-section of the mainline pipe, thereby ensuring optimum water flow without pressure loss. The weather, UV and ozone-resistant hose collar facilitates large angles.

Patented by BAUER

Alignment control

BAUER is the only manufacturer to offer a control lever that is mounted directly above the swivel point of the flexible joint. Any torsion in the pipe has no influence on the control; the entire system is kept stress-free. Optimum adjustment of switching brackets with precision bearings of the control cams ensures precise movement transmission. Precise drive tower control system leads to a long product lifespan.

Highest precision for more than 12 towers

Precision control

The precision control for extreme precision of linear and Centerliner systems and systems with more than 12 drive towers. The angles between the drive towers are transmitted by means of control cables, counter-balancing any torsion in the steel structure.

Control panels
Perfect irrigation management

Pivot controls

Tried and trusted sturdy elements for application under the most extreme conditions. Easy-to-use control surface and robust control elements to ensure smooth operation. All of the basic functions for automatic operation are integrated into all of the control centres. A comprehensive range of accessories is available for retrofitting further elements for additional operating functions.

Innovative irrigation management and accurate control

  • Only standard quality components from well-known manufacturers (Schneider Electric, Schrack, Moeller, etc.) are used in accordance with the strictest VDE standards.
  • The corrosion protection of the switch cabinets has been adapted to tolerate extreme climatic conditions.

SmartTouch CP100

  • Big touchscreen 10.4“ for most comfortable usability and visual display of the machine’s operational status
  • Entry of up to 10 separate irrigation programs possible
  • Division of the field into up to 6 different segments with different precipitation rates
  • Additional freely programmable outputs
  • Emergency operation via percentage timer
  • GPS modem for position sensing
  • SmartRain-ready
  • VRI-ready

Universal Touch

  • Well-arranged touchscreen 4.3“ for most comfortable usability and visual display of the machine’s operational status
  • Entry of up to 10 separate irrigation programs possible
  • Division of the field into up to 6 different segments with different precipitation rates
  • GPS modem for position sensing
  • SmartRain-ready
  • VRI-ready

Smart Connect

  • Communication via own radio network, therefore no GSM network is necessary
  • Pressure monitoring on the last tower to guarantee optimal water distribution
  • Intuitive menu navigation
  • Including GPS module for optimal watering
  • Auto reverse operation of the pivot
  • Automatic notification of unexpected stops
  • Storage of all irrigation operations and any errors for perfect traceability and data preparation
  • Pivot can be equipped with VRI
Motor-PS3BSP Cutaway1-CMYK
Reliable - durable

Gear motor

  • High-torque motor with thermal overload protection
  • Enclosed moisture-proof motor
  • High efficiency spur gear
  • Shaft seal with specific dirt-repellent profile
For standard or mobile systems?

Gear boxes

Gear boxes for standard systems

  • Worm gear for high torques, 50:1 gear ratio
  • Large-sized tapered roller bearings
  • Integrated expansion chamber
  • Shaft seal with specific dirt-repellent profile

Gear boxes for mobile systems

  • Decoupling of worm for free-travel (towing)
  • Simple to change from pivot mode to towing mode
Comfort tires for highest demands


  • Wide variety of tires/tire dimensions for fine tuning for different soils and crops.
  • Standard dimensions available 14.9 –24; 16.9 –24
  • Tires with traction profile
  • Retracted hose for maximum operating safety
  • Galvanized rims for optimal corrosion protection
Bauer Beregnung SmartRain Pivot

Irrigation 4.0

The GPS-supported application SmartRain offers new possibilities in irrigation management. No matter where the user is, he is always informed about the current status of his irrigation system and can also remotely control the machine at any time.

More about SMARTRAIN 6_7_8 Plus)


The Irricontrol app offers the possibility to optimally use and monitor the irrigation systems. The data provided by Irricontrol give a clear overview of the applications and consumptions.
