Bauer_Blitz_Güllewerfer_AT 13
For professionals

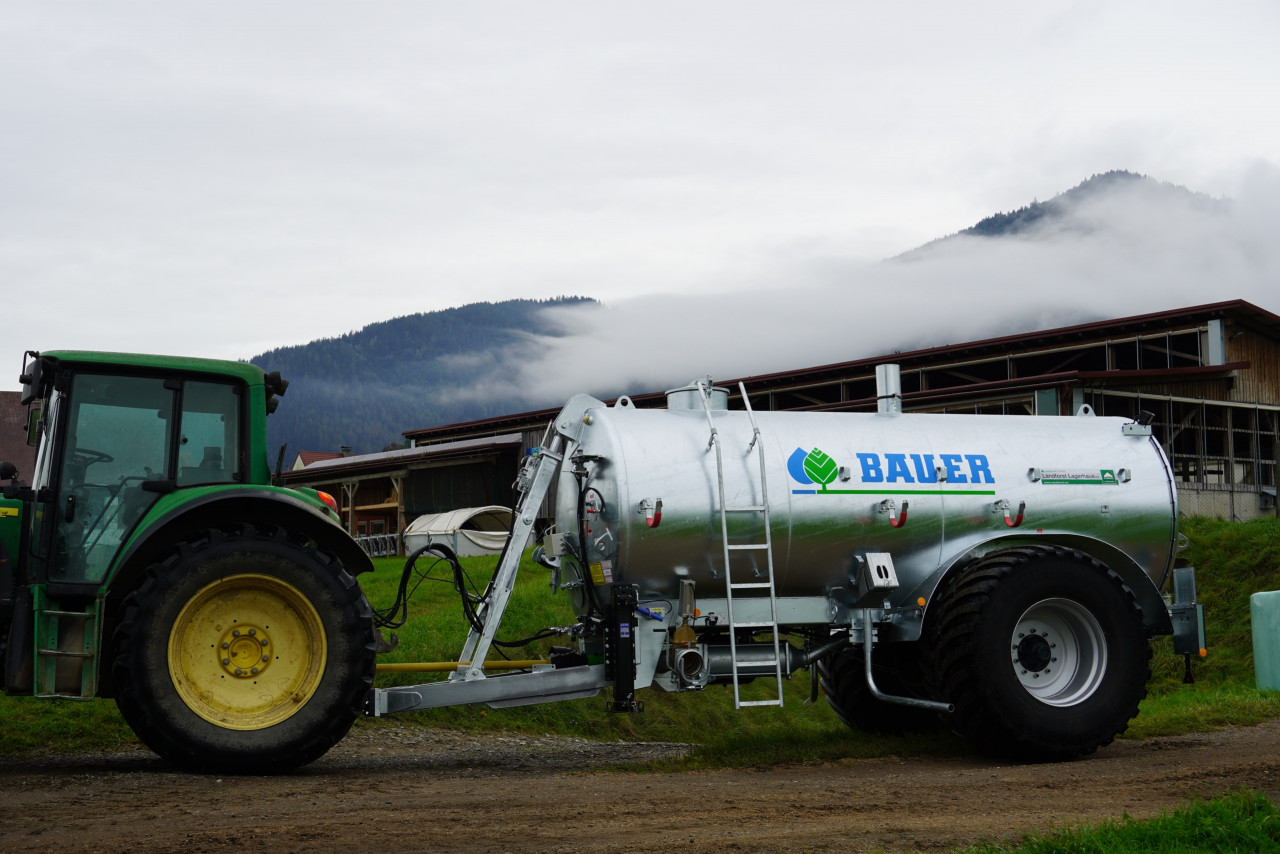

Pump Tankers by BAUER

Contractors and farmers with high demands on technology and performance will find their individual slurry tanker in the professional pump tanker range. Quality and design, paired with your specific needs, will offer you an economical machine. We work with you to prepare your requirements profile, and we use this profile to manufacture a profi pump tanker that meets your operating conditions.

machine welded

galvanized

BAUER Eccentric Rotor Pump

Pumpfassbehälter_sev
Proven technology for decades

Steel Tankers

BAUER pump tankers in steel construction can hold up to 24,000 litres transport volume.
We use only certified top-quality steel plate of renown steel factories. The tanks are rolled, joined and finally automatically welded in diameters of 1100 mm - 2000 mm on our own production lines. All components such as tanks, anti-surge baffles, frames and drawbars are calculated and approved according to the strict Austrian guidelines.

Pump Tankers
Large Strip Width
Exact Application Rate
Technology and Design
Pump Tankers
DSCN0823
BAUER

Pump Tankers

  • All components such as vacuum-/pressure tanks, anti-surge baffles, frames and drawbars are calculated and approved according to the strict Austrian guidelines.
  • The standard hot-dip galvanization according to DIN EN ISO 1461 ensures long-term corrosion protection.
  • The high-gloss galvanization with the typical "zinc flower" gives our tankers an amazing appearance. In order to preserve the appearance over many years, all galvanized tankers are finished with a special passivation.
Large Strip Width

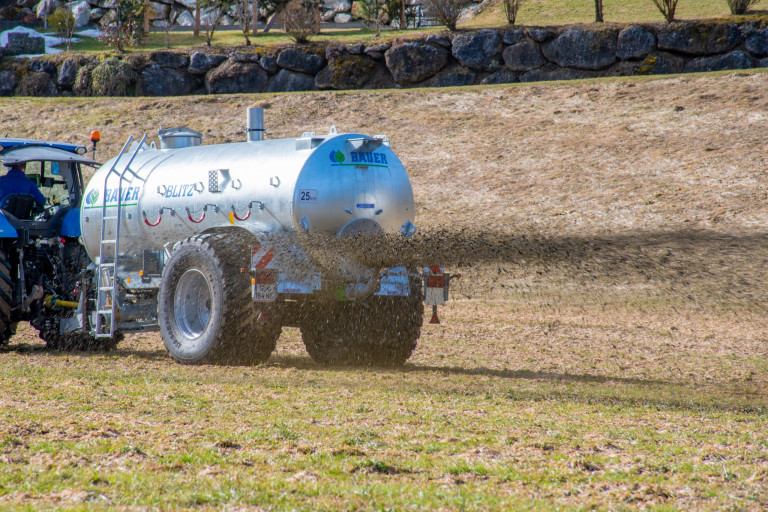

Bauer_Blitz_Güllewerfer_AT 13
ULTRAfast

High Performance due to Large Strip Width

Bauer pump tankers stand out due to fast filling, high spreading pressure and sturdy pumps. The high-quality standard equipment is complemented by a comprehensive range of accessories.

Exact Application Rate
3WS Stahlfass
Exact

Quantity Control of Application Rate

With the Bauer pump tanker, it is possible to regulate the application rate via the 3-way valve, the pump speed and the driving speed. The application rate can be regulated by adjusting the 3-way valve. High spreading pressure of the pump tanker guarantees large strip widths and a uniform slurry distribution.

Technology and Design
Konstruktion
Designed in 3D

Technology and Design

Our experienced construction engineers develop new components and equipment focusing on well proven technology. BAUER slurry tankers are drawn in full 3D on CAD design workstations, ensuring that spare parts are available even after many years. Test runs and load tests make sure that every prototype is ready for series production.

Your confidence is based on our experience.

E4000GLD_BAUER-freigestellt
The heart of the pump tanker

The Eccentric Rotor Pump

The Bauer eccentric rotor pump is characterized by its high performance data. The extra-large suction box for the tanker insert with a standard foreign body discharge flap protects the tanker from heavy foreign objects.

  • Three size gradations offer the right pump for each tanker.
  • The pump is self-priming, pulsation-free and delivers in direct proportion to the rotation speed.
  • The pump head which is running in an oil bath, is protected from the pump chamber by a high-quality mechanical seal.
Pump Rotor
Pump Stator
Pump Rotor
Rotoren frei homepage
Manufactured at our own premises.

Pump Rotor

The pump rotor is manufactured at our own premises. The hollow rotor is made of high-grade steel in a special hot forming process. The low weight of the hollow rotor provides to the pump its smooth running. The whirling process makes the surface perfect, provides for a precise external geometry and a very smooth running surface. This is decisive for high output and low wear. The final surface-hardening serves to refine this perfect surface and to provide a long service life and good resistance.

  • BAUER in-house production
  • Hollow rotor provides smooth running
  • Smooth surface ensures low wear
Pump Stator
Stator grün
Manufactured at our own premises.

Pump Stator

The pump stator is manufactured at our own premises. A special rubber mix is vulcanized into a steel tube via an extruder. The recipe of rubber mix is appropriate for the use with both slurry and water on account of long experience and of today’s possibilities of materials. After the extruding process, the rubber geometry is hardened in an oil bath offering thus good wear resistance and hence a long service life.

  • BAUER in-house production
  • Special rubber mix appropriate for the intended use
  • 100% matching with the rotor guarantees high output and long service life
Especially for your requirements.

Options for Pump Tankers

Hose Applicator / Trailing Shoe Applicator
Automatic Suction
Automatic Filling Stop
SLE System
Hose Applicator / Trailing Shoe Applicator

Hose Applicator / Trailing Shoe Applicator

This allows for a subsequent attachment of a spreading boom. Thanks to the serial flat manhole, the spreading device can be attached as closely as possible to the tanker body.

Automatic Suction

Automatic Suction

Fast, effective, clean. And without getting off the tractor. With a suction arm (automatic suction), you hydraulically dock the suction line into a suction funnel placed on the slurry pit/lagoon. Thanks to hydraulically controlled suction slides, you start/stop the filling process directly from the tractor. Different types of suction arms are available.

Automatic Filling Stop

Automatic Filling Stop

An electronic system detects the maximum filling level and pneumatically or hydraulically switches the slide valves from suction to repumping, thus preventing overfilling.

SLE System

SLE System

This vertical load upholding system (SLE system) automatically controls the filling level of the first tank chamber and always allows maximum drawbar load. The SLE system allows maximum traction on the tractor wheels, thus minimising any damage to the ground. Furthermore, it contributes to a much safer driving behaviour. No wear parts in the system allow for obstruction-proof operation, and the serial best stirring properties of the pump tanker are not affected.

Pump tankers

Tandem

Our pump tankers are also available in tandem execution

Tandem
Four-Spring Tandem

Tandem Chassis Technology

Pump tandem tankers from 10,000 litres have been equipped with the proven 4-spring tandem unit for many years now. Sturdy suspended parabolic springs combined with the compensating rocker and, on large series, with additional longitudinal stabilisers provide driving safety and high load-bearing capacity. From size V100TL, a self-steering on the second axle is included as standard. This ensures low tyre wear and soil protection in the field.

IMG_0729
Four-wheel brake

Spring-Loaded Tandem Groups

Pump tandem tankers from 10,000 litres have been equipped with the proven 4-spring tandem unit for many years now. Sturdy suspended parabolic springs combined with the compensating rocker and, on large series, with additional longitudinal stabilisers provide driving safety and high load-bearing capacity. From size V100TL, a self-steering on the second axle is included as standard. This ensures low tyre wear and soil protection in the field.

Especially for your requirements.

Especially for your requirements.

Pumps
Hose Applicator / Trailing Shoe Applicator
Automatic Suction
Automatic Filling Stop
SLE System
Tyre Pressure Regulators
Pumps
Pump Tanker Tandem

Pumps

Pumps of different capacity

Hose Applicator / Trailing Shoe Applicator
Pump Tanker Tandem

Hose Applicator / Trailing Shoe Applicator

Preparation for hose applicator / trailing shoe applicator: allows for a subsequent attachment of a spreading boom. Thanks to the serial flat manhole, the spreading device can be attached as closely as possible to the tanker body.

Automatic Suction
Pump Tanker Tandem

Automatic Suction

Fast, effective, clean! And without getting off the tractor.  With a suction arm (automatic suction), you hydraulically dock the suction line into a suction funnel placed on the slurry pit/lagoon. Thanks to hydraulically controlled suction slides, you start/stop the filling process directly from the tractor. Different types of suction arms are available.

Automatic Filling Stop
Pump Tanker Tandem

Automatic Filling Stop

An electronic system detects the maximum filling level and pneumatically or hydraulically switches the slide valves from suction to repumping, thus preventing overfilling.

SLE System
Pump Tanker Tandem

SLE System

This vertical load upholding system (SLE system) automatically controls the filling level of the first tank chamber and always allows maximum drawbar load. The SLE system allows maximum traction on the tractor wheels - thus minimising any damage to the ground. Furthermore, it contributes to a much safer driving behaviour. No wear parts in the system allow for obstruction-proof operation, and the serial best stirring properties of the pump tanker are not affected.

Tyre Pressure Regulators
Pump tanker Tandem

Tyre Pressure Regulators

Configure your own individual tanker from a wide range of tyre pressure regulators, the latest control technology and many other options.
